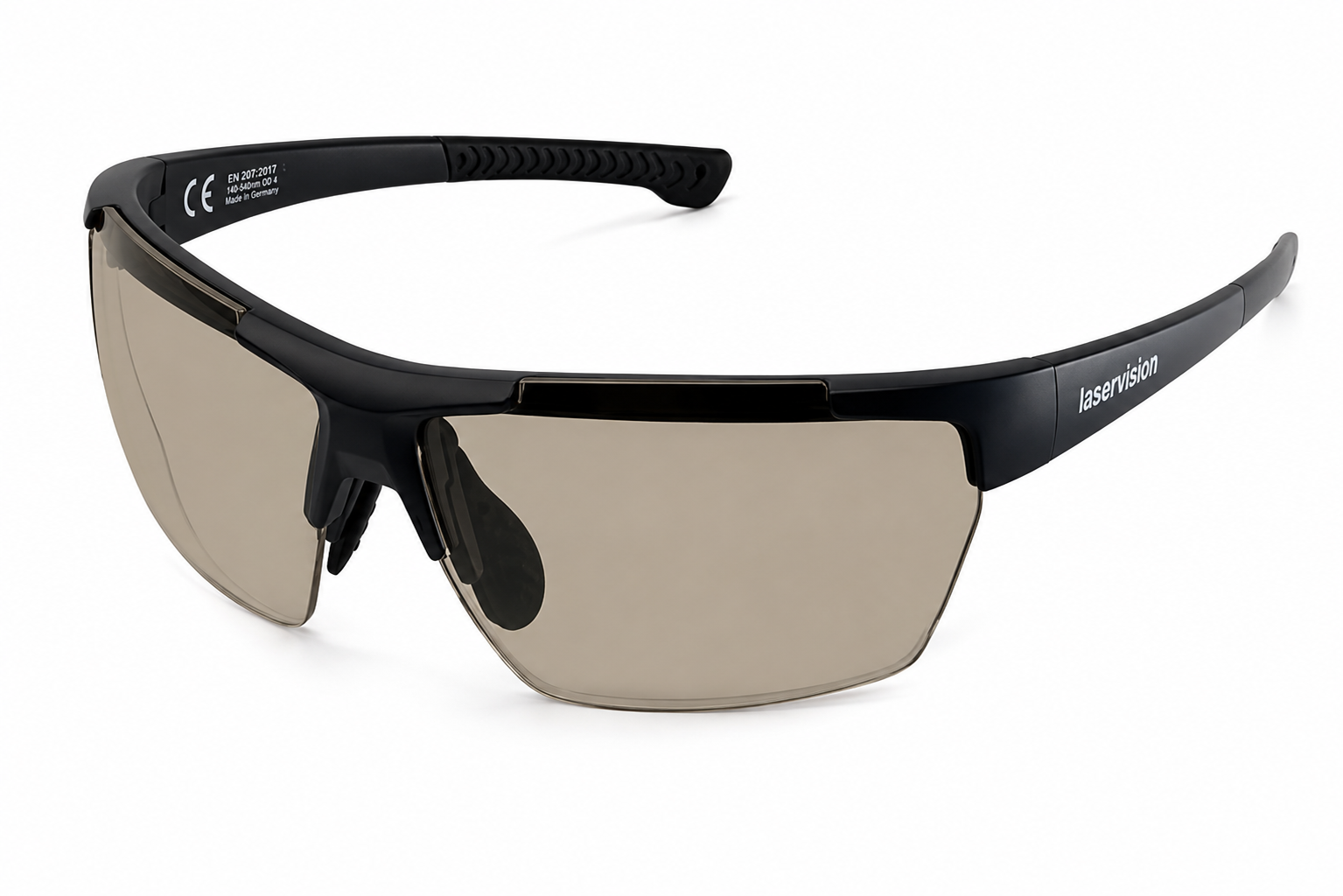

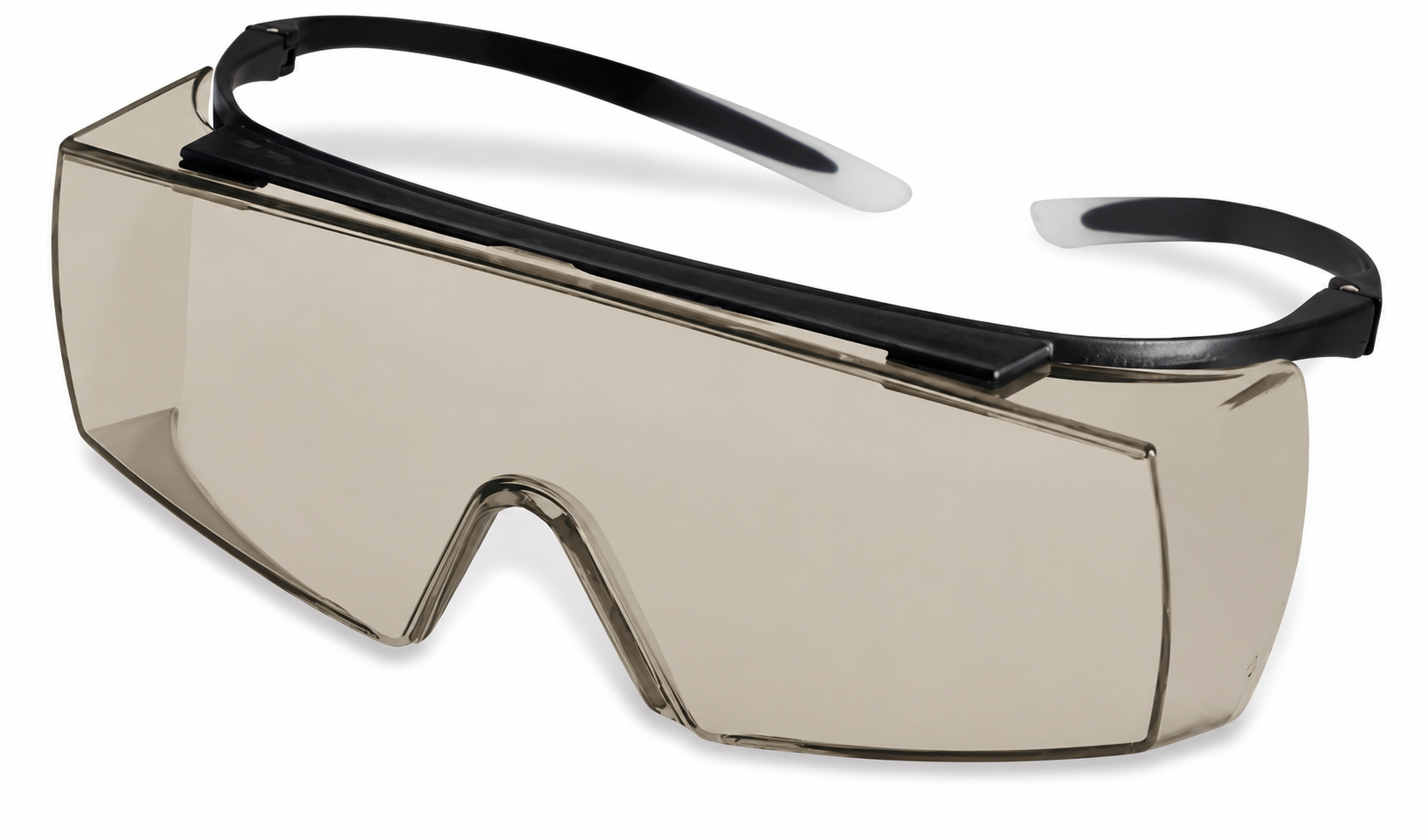

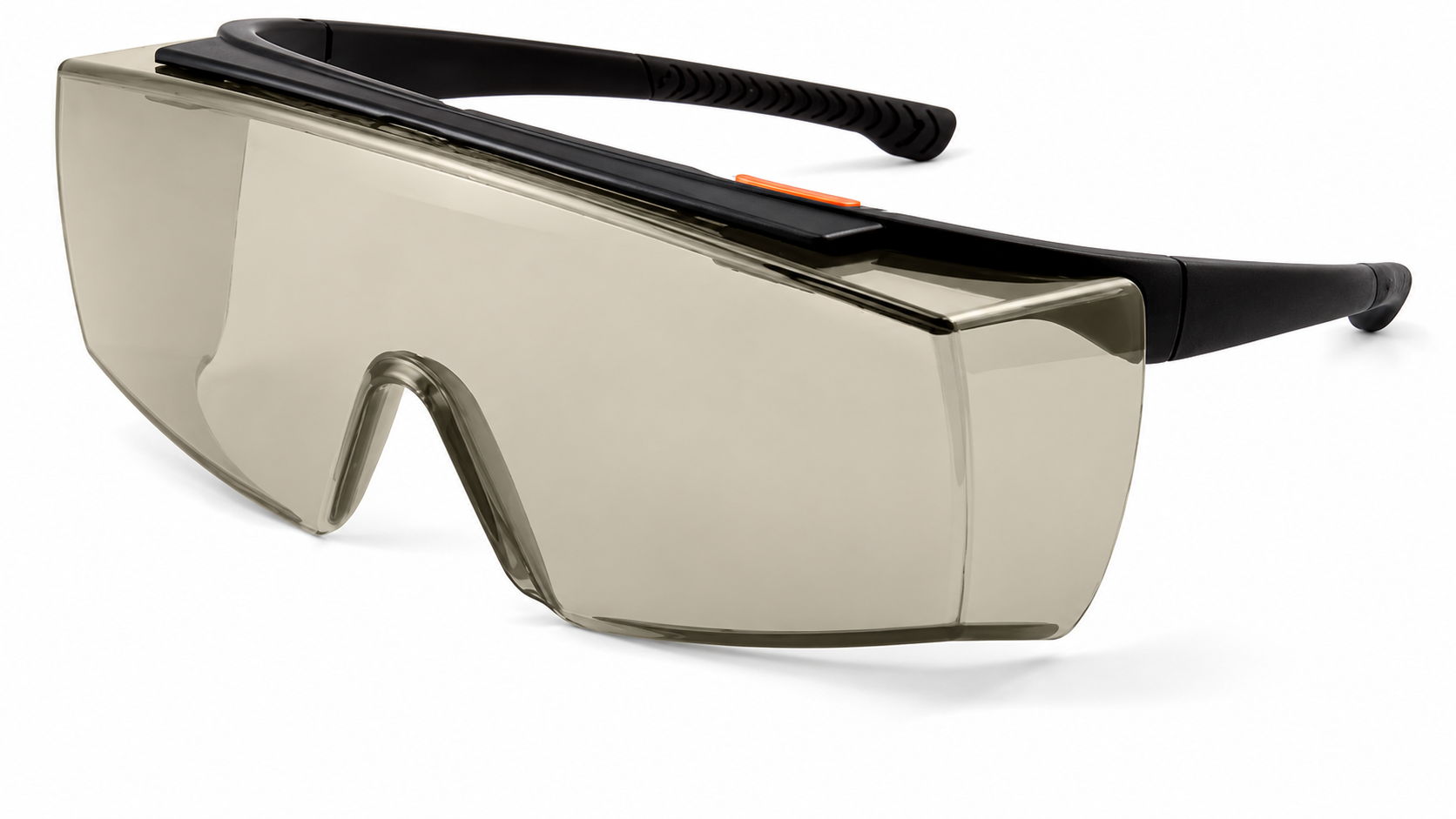

P5M03, Laser Safety Goggles
Laser Safety Goggles, VLT 25%, for CO2, Excimer, Fiber and Nd:YAG lasers
The P5M03 laser safety goggles use a grey polycarbonate filter with 25% visible light transmission (VLT) and protect against CO₂, Excimer, Fiber lasers. Supplied by Britton, Bengaluru, India.
Protection levels (optical density):
- OD 8+ @ 180 - 375 nm
- OD 6+ @ 1020 - <1030 nm
- OD 7+ @ 1030 - <1040 nm
- OD 8+ @ 1040 - 1064 nm
- OD 7+ @ >1064 - 1073 nm
- OD 6+ @ >1073 - 1083 nm
- OD 5+ @ >1083 - 1090 nm
- OD 2+ @ 1400 - <1600 nm
- OD 3+ @ 1600 - <1750 nm
- OD 4+ @ 1750 - 3000 nm
Always confirm that the optical density and wavelength range match your laser before use. Select a suitable frame from the datasheet.
Material: Polycarbonate
Color: Grey
VLT: 25%
Filter Specifications (OD):
OD 8+ @ 180 - 375 nm
OD 6+ @ 1020 - <1030 nm
OD 7+ @ 1030 - <1040 nm
OD 8+ @ 1040 - 1064 nm
OD 7+ @ >1064 - 1073 nm
OD 6+ @ >1073 - 1083 nm
OD 5+ @ >1083 - 1090 nm
OD 2+ @ 1400 - <1600 nm
OD 3+ @ 1600 - <1750 nm
OD 4+ @ 1750 - 3000 nm
OD 5+ @ 1980 - 2550 nm
OD 6+ @ 5400 - 11500 nm
Common Laser Types: CO₂, Excimer, Fiber, Nd:YAG
Please select a suitable frame from the datasheet.
