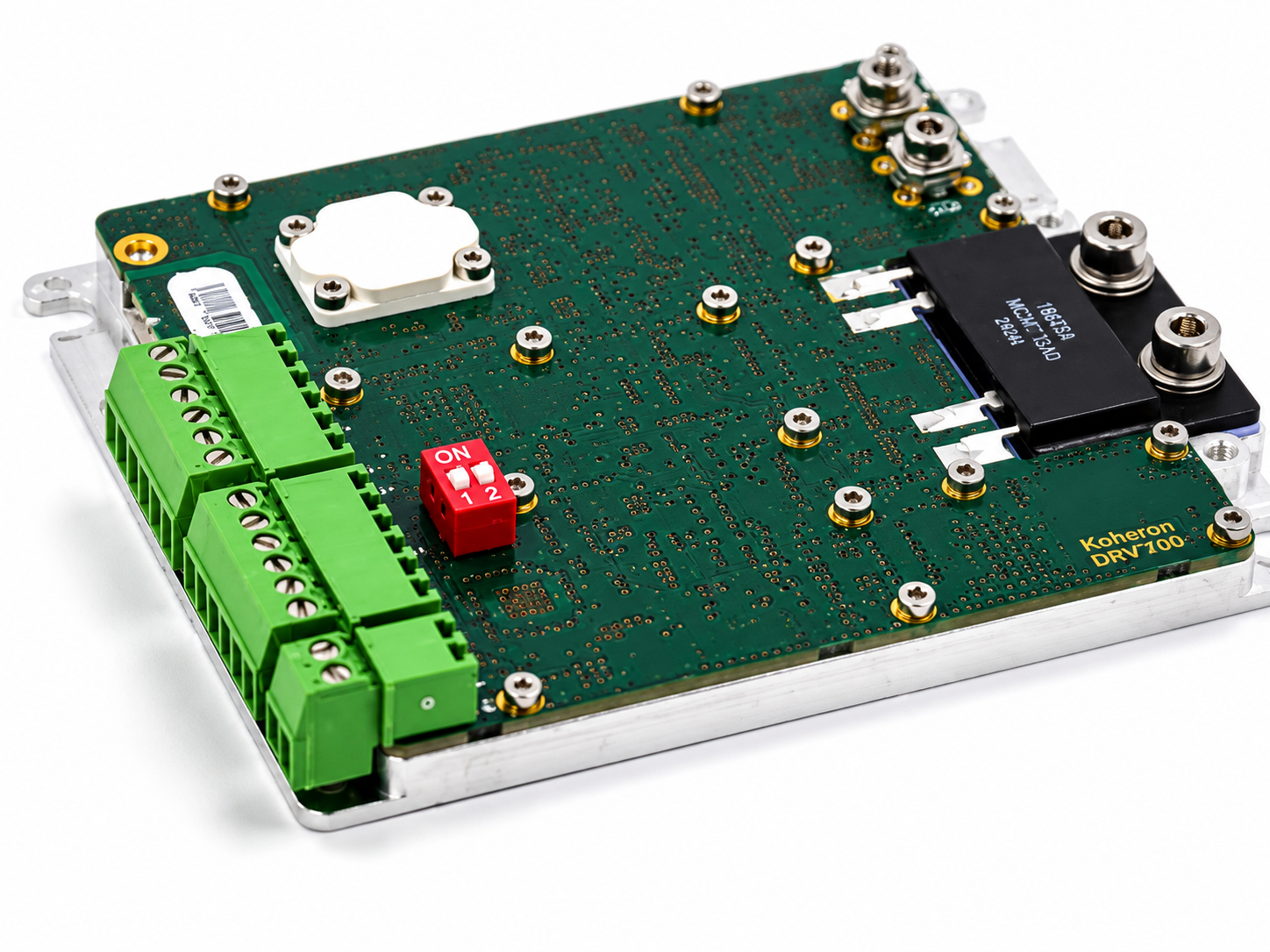

DRV700, Precision programmable current source

Output current: 0 mA to 650 mA

Compliance voltage I = 600 mA: 7 V

DC output impedance: ≥ 1 MΩ

Maximum load inductance No external compensation: 1 mH

Precision

Digital resolution: 20 bits

Output current resolution Dithering OFF: 750 nA

Non-linearity I < 400 mA: < 3 ppm

Stability

RMS noise 0.1 Hz to 10 Hz: 30 nArms

Current noise density 1 kHz: 200 pA/√Hz

Temperature coefficient: < 2 ppm/°C

Allan deviation 1000 s: < 40 ppb

Power supply

Supply voltage: 21 V to 33 V, nom. 24 V

Supply current: 800 mA

Quiescent current: 100 mA

Mechanical Parameters

Outside dimensions: 109 mm x 90 mm x 17 mm

Weight: 150 g

Operating temperature: -10 °C to 70 °C
