DLA490107, Lambda beam 375-300 MM², 375 nm, 300 mW, multimode
-
DLA490132, Lambda beam 380-175 MM², 380 nm, 175 mW, multimode
-
DLA490244, Lambda beam 785-100, 785 nm, 100 mW, single mode
-
DLA490499, Lambda mini EVO 375-50, 375 nm, 50 mW, subminiatur laser, integr.controller, CW
-
DLA490503, Lambda mini EVO 405-50, 405 nm, 50 mW, subminiatur laser, integr.controller, CW
-
DLA490510, Lambda mini EVO 515-25, 515 nm, 25 mW, subminiatur laser, integr.controller, CW
-
DLA490513, Lambda mini EVO 520-50, 520 nm, 50 mW, subminiatur laser, integr.controller, CW
-
DLA490524, Lambda mini EVO 450-75, 450 nm, 75 mW, subminiatur laser, integr.controller, CW
-
DLA490530, Lambda mini EVO 488-50, 488 nm, 50 mW, subminiatur laser, integr.controller, CW

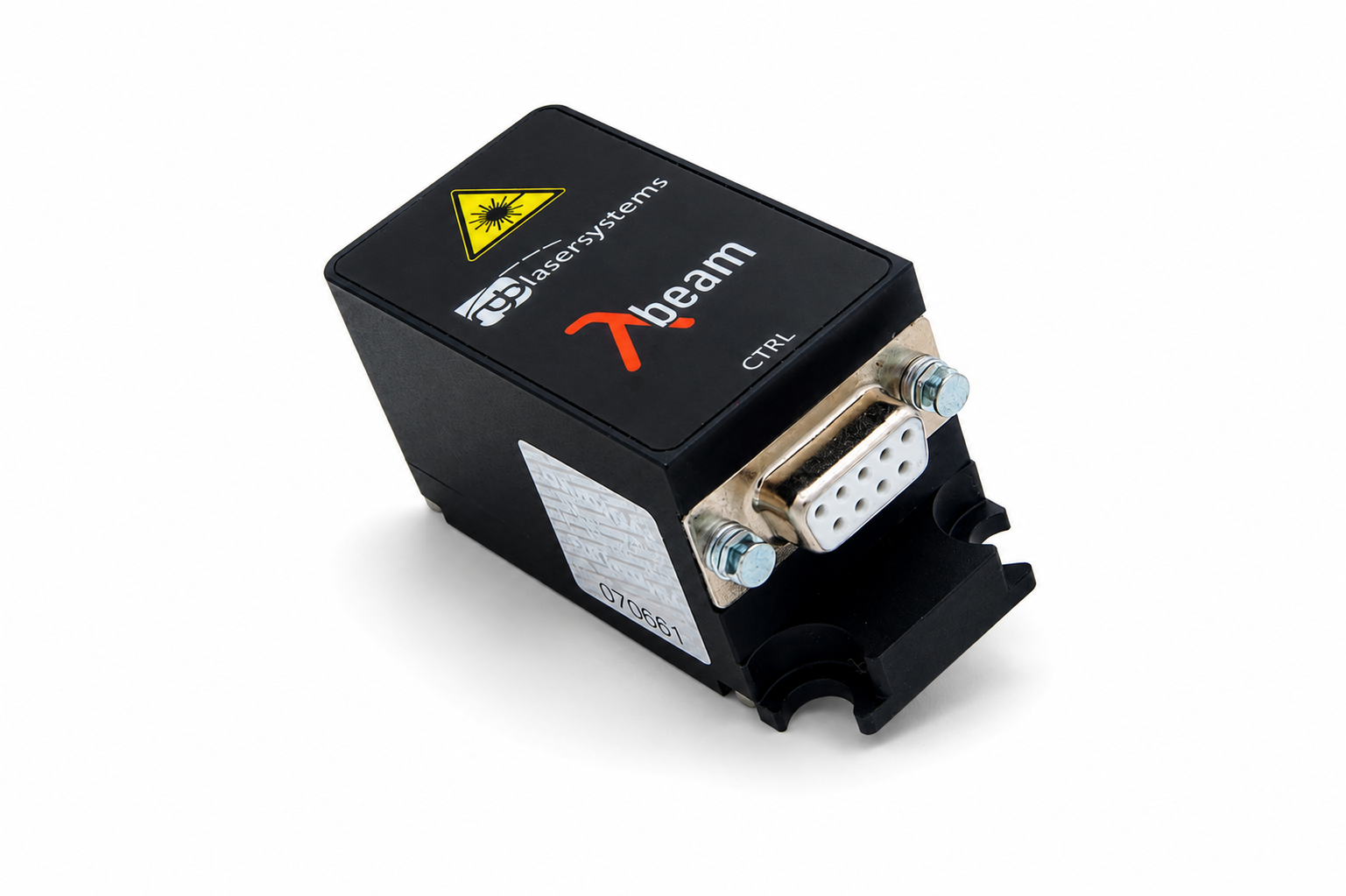

A compact and high-performance laser module designed to deliver exceptional wavelength accuracy and optical output power without compromise. Engineered for reliability, stability, and seamless integration, this laser source is ideal for demanding industrial, scientific, and research applications.
Featuring a robust design, excellent beam quality, and long operational lifetime, the module ensures consistent performance even in challenging environments. Its compact footprint allows easy integration into OEM systems, analytical instruments, machine vision setups, spectroscopy equipment, biomedical devices, and precision measurement systems.
Wavelength: 375 nm
Output Power: 300 mW
Beam Mode: Multimode
Polarization: Linear, >100:1
Divergence: <1.2 mrad
Beam Diameter: 1.1 × 2.2 mm to 1.2 × 4.3 mm
Pointing Stability: <5 µrad/K
Noise: <2% RMS
Power Stability: <1% (10 h)
Temperature Accuracy : <10 mK
Warm-up Time: Ready after 5 s, calibrated after 5 min
Drive Mode: Active current control
Modulation: Analog or digital external modulation up to 1.5 MHz
Control Interface: USB (power, temperature, modulation control)
Remote Control: Optional optical remote control
Recommended products
Goggle suggestions use the ANSI Z136.1 method for continuous-wave lasers (7 mm pupil; 0.25 s for visible, 10 s for near-infrared wavelengths) and list only goggles rated at or above the required optical density at this wavelength. Please confirm the choice with your laser safety officer.
