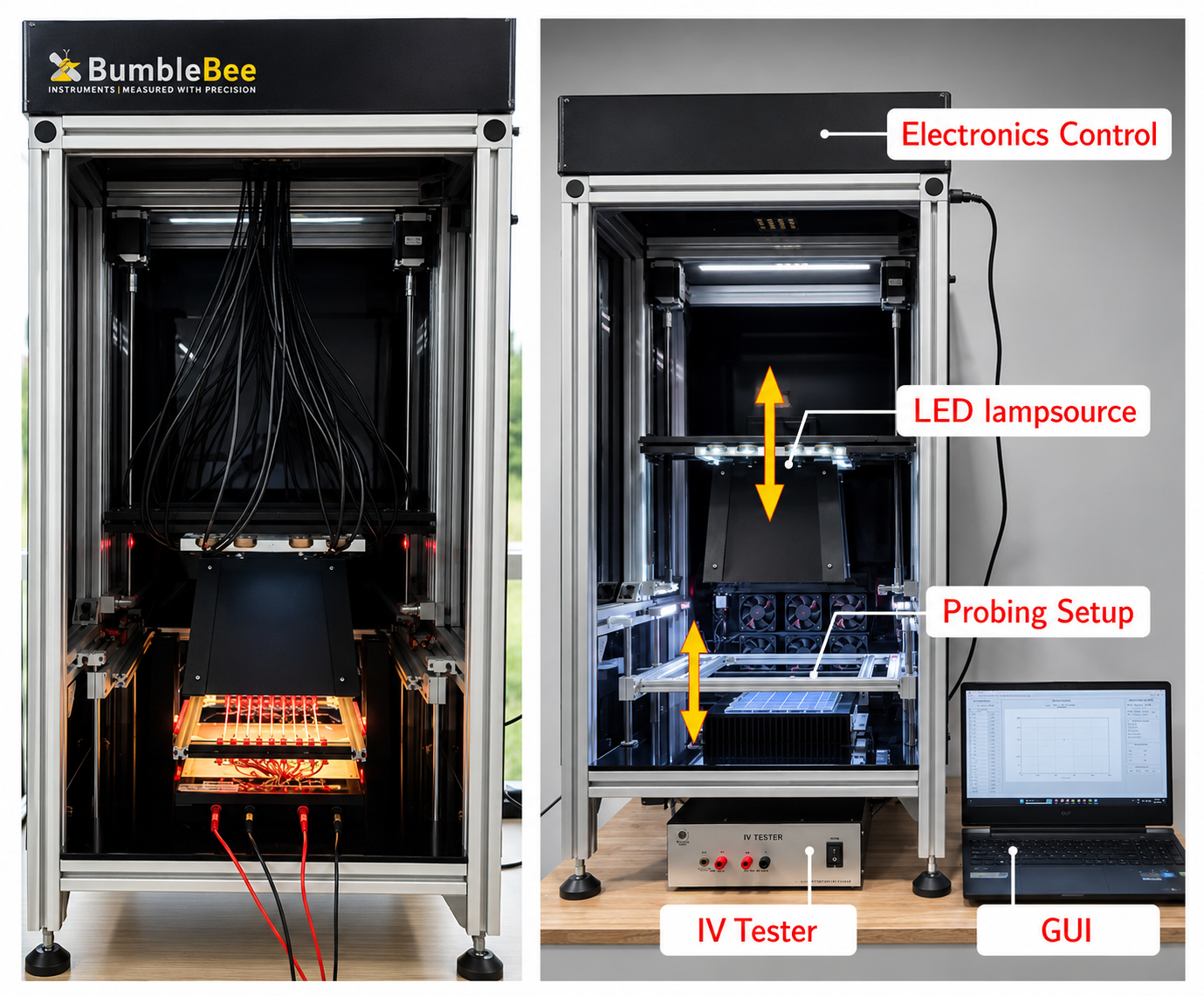

Class AAA LED Solar Simulator
LED-based
Solar Simulator is engineered for high-precision photovoltaic characterization.
It provides a Class AAA illumination profile over a 100 mm diameter target
area, fully compliant with IEC 60904-9:2020 standards. Featuring a variable
spectrum with individual LED channel control, active water cooling, and
integrated real-time spectral monitoring.
Product Type : LED-based Solar Simulator
Standard Compliance : Equivalent to IEC 60904-9:2020
Classification Class : AAA
Spectrum Reference : AM1.5G (Global Tilt)
Wavelength Range : 350 nm – 1050 nm
Illumination Area : Ø 100 mm
Working Distance : 7 cm
Irradiance Output : 1000 W/m² (1 Sun)
Irradiance Adjustment Electronic Dimming : (Steps of 100 W/m²)
Spectral Coverage : > 85%
Spectral Deviation : < 85%
Light Source Lifetime : > 15,000 Hours
Device Type : Built-in Integrated Spectrometer
Measurement Range : 350 nm – 850 nm
Resolution : ≤ 15 nm
Function : Real-time spectral measurement & feedback
Cooling System : Water Cooling for LEDs
Motorized Z-Stage for Light Engine movement
Integrated temperature measurement for all channels
Electrical Input Voltage: AC 230V
