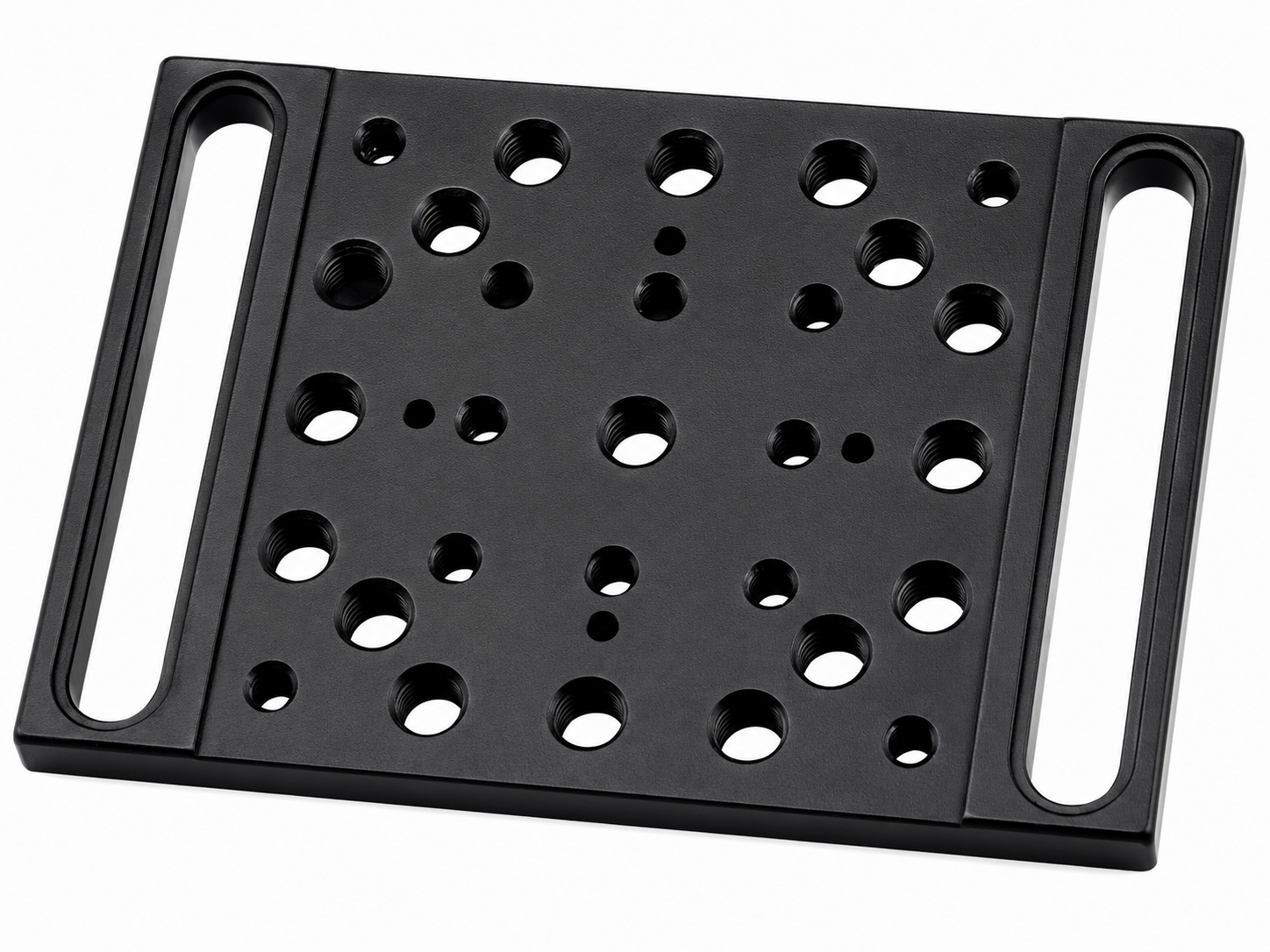

The Universal Base Plate is a precision-machined anodized aluminum mounting plate designed for flexible positioning of optical and laboratory components. Multiple threaded holes and elongated slots provide easy mounting, alignment, and secure installation for a wide range of applications.
Material: Black Anodized Aluminum
Size: 90 × 70 mm
Mounting Holes: Multiple Threaded Holes (M6/M4)
Clearance Slots: 2 × Elongated Mounting Slots
Compatibility: Optical Posts, Post Holders, Translation Stages &
Mounts
Mounting Pattern: Universal Multi-Hole Pattern
Customization: Custom Sizes and Hole Patterns Available
