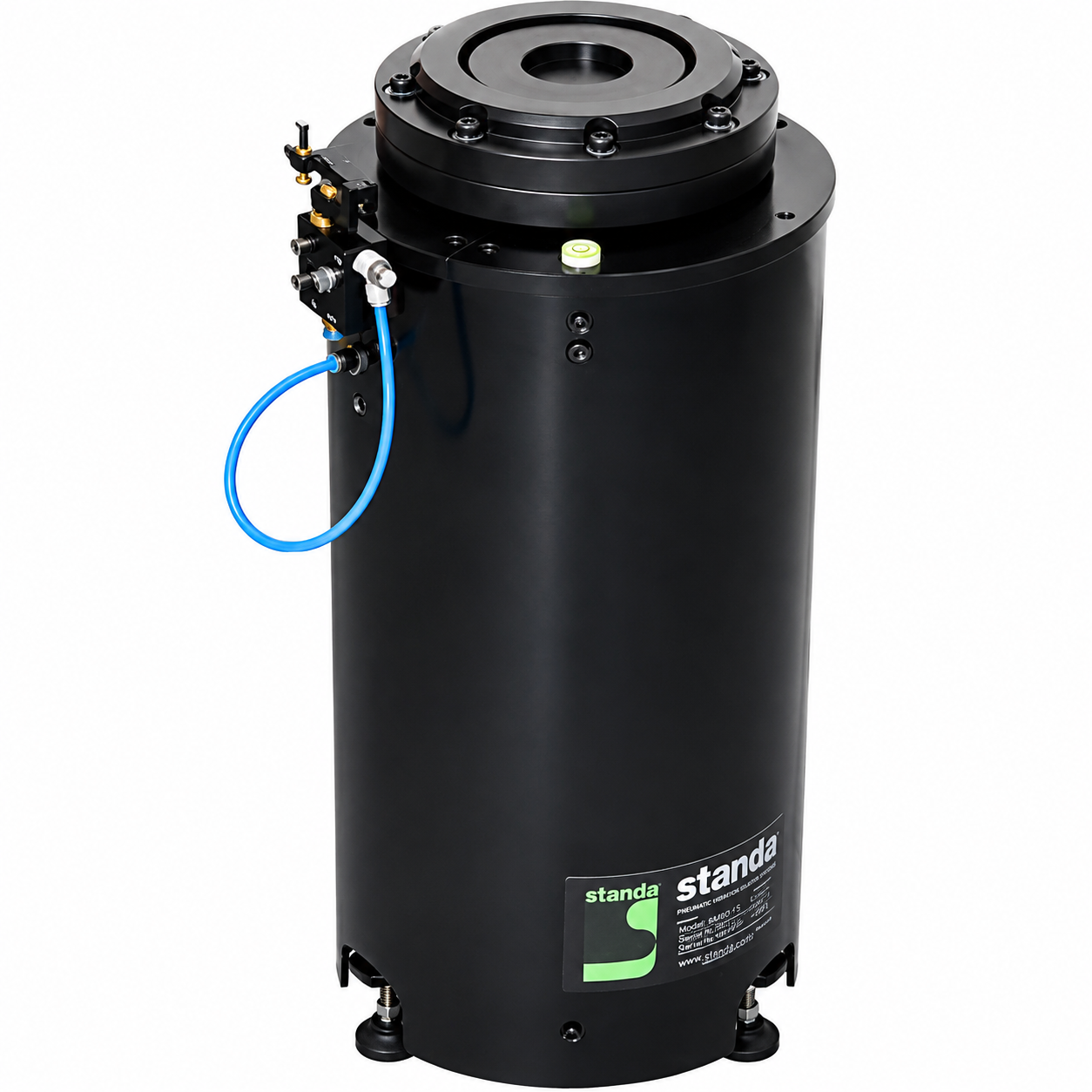

Pneumatic Vibration Isolation System 1VIS27 is an ideal working platform vibration-sensitive for devices such as microscopes, scales, interferometers and similar devices. The working surface of the table is separated from the floor by a highly efficient system of pneumatic supports, which are two chamber pneumatic springs with transitional devices. throttle the system uses rigid and lightweight optical honeycomb tables of various sizes, which allows you to create a large range of systems for a wide range of applications using the entire range of sizes and loads.
Height: 700 mm
Height of the vibration isolation system: H= 500, 600, 700 mm
Vertical movement range: 14 mm
Precision of automatic level control: ±0.3 mm
Vertical Resonant Frequency: 1,9 Hz
Vertical Isolation, 5 Hz: 95 %
Vertical Isolation, 10 Hz: 99 %
Horizontal Resonant Frequency: 1,2 Hz
Horizontal Isolation, 5 Hz: 99 %
Horizontal Isolation, 10 Hz: 99 %
Max. Air Pressure: 6 bar
Horizontal Damping: Rubber
Max. load Capacity (set of four): 4000 kg
Vertical Transmissibility at Resonance: 10 dB
Horizontal Transmissibility at Resonance: 5 dB
Operating humidity (max): 90%
Operating temperature range: 10–50 ºC
Minimal load per isolator: 90 kg
Weight (1 isolator): 35kg
